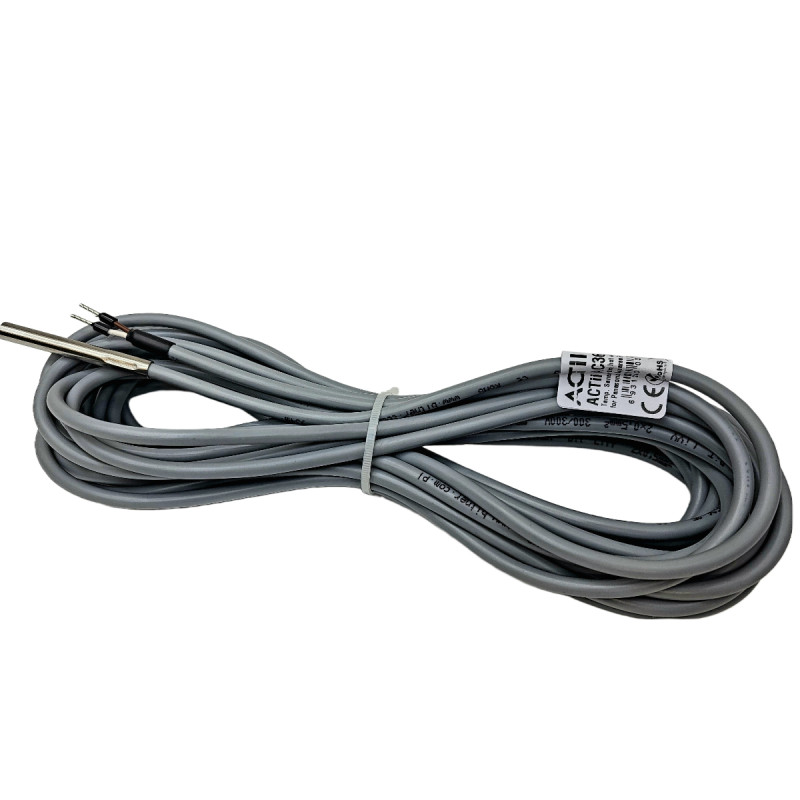

Heating Circuit and Pool Water Temperature Sensor for Panasonic Aquarea Heat Pump PAW-A2W-TSHC 5m

Model: ACTii AC3705

EAN: 6931240037058 SKU: 370561318

• High-quality precision temperature sensor
• Uses a specialized flexible copper control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃, compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel
• Each sensor is tested at 3 different temperatures to ensure measurement compliance with a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Leaks are a common problem with temperature sensors, leading to damage from moisture.
• Our temperature sensors are of higher quality. Unlike the competition, we use only 100% copper thick certified control cable manufactured in the EU with thick and flexible insulation. We use branded sensors. Each sensor is checked by us for measurement compliance with a reference sensor.
• Sensor terminated with a connector matching the socket located on the motherboard of the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the motherboard.

Description

Heating Circuit and Pool Water Temperature Sensor designed for Panasonic Aquarea heat pumps from the H series

Sensor designed for all Panasonic heat pumps where the acceptable sensor is labeled: PAW-A2W-TSHC, (the user manual lists the sensor model intended for a given heat pump)

Sensor cable length: 5m

Leaks are a common problem with temperature sensors, leading to damage from moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with Panasonic Aquarea

Application: Panasonic Heat Pumps

Sensor measurement range: -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel

Cable termination: 2x straight connector crimped on the cable

Cable length: 5m (196 inches)

Cable Parameters

Cable parameters:

Cable type: Control / signal cable

Operating voltage: 300/300V

Test voltage: ≤ 0.34mm2 1200 V, ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃, Flexible installations: -5℃ to 80℃

Installation conditions: Indoor cable, Min. installation temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals / Admissions: CPR - Certificates / DoP

Cable construction:

Conductor material: copper conductors

Conductor construction: Class 5 (according to EN 60228, IEC 60228)

Core construction: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and mobile equipment. Suitable for indoor use in dry and damp rooms.

Other Information

Temperature sensors with other cable lengths are available in our offer

Temperature sensor application

Designed for Panasonic Aquarea heat pumps from the H series

Heating Circuit Temperature Sensor ( PAW-A2W-TSHC )

Pool Water Temperature Sensor ( PAW-A2W-TSHC )

Set contents

Temperature sensor with 5m cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 50 x 250 mm (D x W x H)

Packaging dimensions: 50 x 250 x 50 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 270 g
