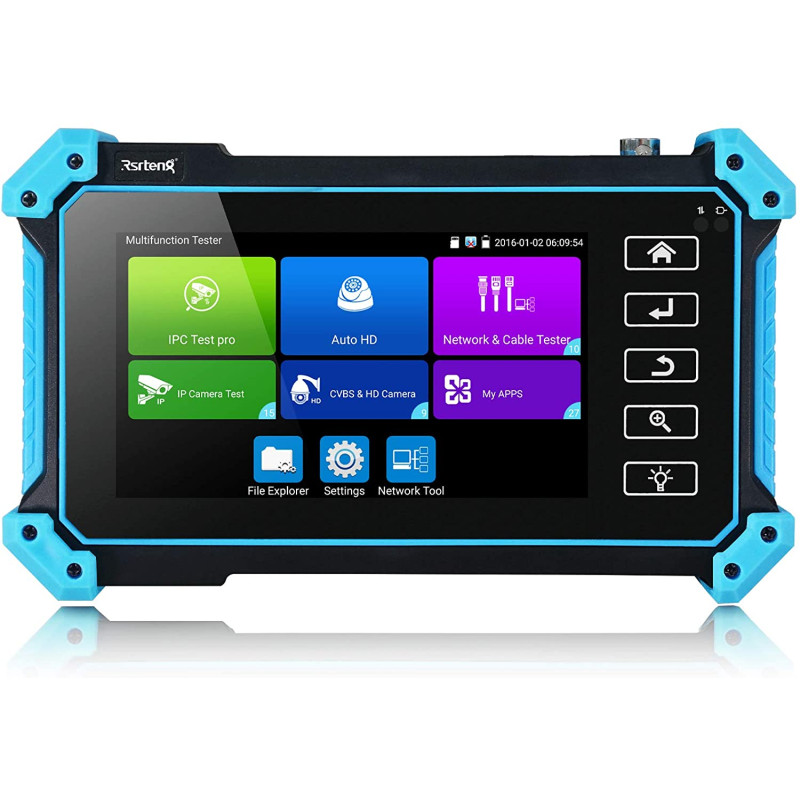

IP Camera Tester 5 Inch Touch LCD Service Monitor 1920x1080 AHD CVI TVI CVBS PTZ PoE WIFI ONVIF 4K Android RJ45

Model: ACTii AC5407

EAN: 6931240054079 SKU: 540717797

• IP Camera Tester using ONVIF and RTSP protocols, AHD, TVI, CVI cameras and analog CVBS cameras
• 5 inch TOUCH LCD screen, Resolution 1920x1080.
• Supports H.265, H.264 and 4K resolution
• WIFI allows you to test wireless cameras as well as connect to cameras wirelessly, can act as a Hotspot
• Video, Photo recording and saving to SD card
• PING test: test IP camera or other devices on the LAN (IP address, port)
• Video signal: level testing
• Video signal peak (PEAK) sync level (SYNC), color burst (COLOR BURST)
• Network cable tester, TDR cable test
• IP address: scanning, fast search for the IP address of the connected IP camera and other network devices.
• POE - Powering cameras with POE (48V), voltage meter; test PoE switch, voltage for IP cameras and other devices
• PTZ tester, address scanning.
• Supports RS232/RS485/RS42, speed 600 to 115200bps - adjustable, supports over 30 protocols e.g.: PELCO P, PELCO-D, SAMSUNG.
• PTZ protocol analysis, displays control protocol commands to check if RS485 transmission is correct, easy to find the cause of the problem
• PTZ control. Up/Down/Left/Right, P/T units, lens zoom, focus, aperture adjustment
• Audio input, device signal reception test.
• High-capacity 3350mAh lithium-polymer ion battery. The device uses an advanced control and protection circuit.
• Long battery life: 6 hours of normal operation.
• Power output for cameras: DC 12V 2A and PoE 48V
• Flashlight function with LED - facilitates work at night
• Menu in English, German, Polish, ...
• Micro SD memory card slot: allows you to save photos and videos
• Possibility to install additional Android applications like Skype ...
• Solid rigid case for the monitor

Description

IP Camera Tester (ONVIF and RTSP) and AHD TVI CVI and analog CVBS cameras

CCTV camera service monitor with a large number of additional features.

Large 5-inch touch LCD screen with high resolution 1920x1080,

Supports H.265 H.264 and 4K resolution

Video signal level tester, PTZ control, Network cable tester, WIFI

Network cable tester, TDR test

PoE Camera Power (48V), and 12V cameras up to 3A

HDMI and VGA input for connecting e.g. a recorder

The tester has many additional applications e.g.:

- POE power output , IP Discovery , ONVIF, IPC Test, Virtual IPC , Network Tool, HIK, DH test tool , UNV Test Tool , Chrome, CVI, TVI, AHD, HD CVBS, DroiNotes , Data monitor , Flashlight , Calculator, Quickoffice, File Explorer, Rapid Video , Rapid IP Discovery , iVMS-4500 HD , gDMSS HD Lite , VLC , EZView Safire EasyView , Safire Control Center , XMEye , Network State, Audio Recorder , Audio Player , Video Player , RtspPlayer

Applications can also be downloaded from the internet (Android operating system).

Specification

Parameters

IP Camera Tester: YES; ONVIF, RTPS, ONVIF Camera test, resolution up to 2592x1520, Network PTZ controller (ONVIF)

Analog camera tester: YES

Digital camera tester: YES ; Supported standards: AHD, TVI, CVI

Video Test: YES

Signal mode: NTSC/PAL (Auto)

Video output: 1.0 Vp-p

Display: 5 inches, Touch LCD screen, Resolution 1920x1080.

Touch screen: YES

LCD settings: Light, Contrast, saturation

Video input: 1x BNC

Video Level test: YES

Level test: Video signals measured in IRE or mV

DC 12V 2A power output

DC 12V power input

48V DC POE camera power supply

Audio input test: YES

PTZ controller: Communication: Supports RS232 and RS485

PTZ Protocol: over 30 protocols e.g. PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Speed: 600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps

Built-in WIFI network card: YES

RS485 /232: data analysis; Data Monitor: downloading and analyzing control data from controlled devices

Saving videos and taking pictures from the displayed image

Viewing saved videos and photos

HDMI input: supports 4K 30FPS. Resolutions: 4K_3840 x 2160/2K_2560 x 1440P/1920x1080P /1920x1080i /720x480P /720x576P /1280x720P/1024x768P/1280x1024P /1280x900P /1440x900P, etc.

VGA input: supports 1920 x 1200P and resolutions: 60FPS. 1920 x 1200P 60FPS /1920x1080P 60FPS /1792 x 1344P 60FPS /1680x 1050P 60FPS/1600x1200P/900P 60FPS/1440x900P 60FPS/1360x768P 60FPS/1280x1024/960/800/768/7 20P 60FPS/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P

RJ45 TDR cable test

Check wire pair status, length, attenuation, reflection coefficient, impedance, and skew. Can create a test

report. The longest network cable that can be measured is 180 meters.

UTP cable test

Check UTP cable connection status and display on screen. Can detect the end, end, and remote point of the short circuit of the crystal head of the network cable.

IP Scan: Link Monitor: PING test; Fast search for connected IP camera or other network device IP address.

Link monitor; Check if the IP address is occupied

PING testing; Check if the IP camera or Ethernet port in another network device is working normally, and check the IP address

Rapid Video - One-click detects all network cameras and automatically displays the image.

Menu language: English, German, Polish, French ...

Auto shutdown after: 5-60 min

Button sound: On/Off

Operating temperature: -10℃ to +50℃

Acceptable humidity: 30% - 90%

Power supply

Power adapter: DC 12V (2A)

Battery: Built-in 7.4V Lithium polymer battery, 3350mAh

Operating time: about 6 hours; low power consumption; battery charge indicator

Additional information

5-inch IPS touch screen with a resolution of 1920 * 1080

Video mode: CVBS 1-channel BNC input, NTSC / PAL (automatic adjustment)

PTZ control, RS485 control, Baud 600-115200bps, compatible with over 30 protocols, such as PELCO-D / P, Samsung, Panasonic, etc.

4K / H.265 / H.264 IP Camera Test IP Discovery / Quick ONVIF Test / IPC / RTSP play / Client APK

Fast video Automatically display video, create test report

Hik test tool one-key press to activate hikvision camera, Image test, can modify username, password, and IP parameters

Dahua test tool Dahua camera test, modify username, password, and IP parameters

HD Coaxial Test: TVP 8MP camera test, 3840 x 2160P 15 FPS, control menu / UTC OSD menu

4MP CVI camera test, 2560 x 1440P 25/30 FPS, control menu / UTC OSD menu

5MP AHD camera test, 2560x1944P 12.5F / 20F, UTC control / OSD menu

Image zoom 4x zoom to enlarge image, Screenshot, record, save, view and record and play

Output power 12V / 3A Output Power DC12V / 3A, temporarily power the camera

PoE output power 48V PoE output power, max. Power 24W

Network test Link monitor, port flashing, Ping test

Audio test 1-channel audio signal input, check if sound is normal, 1-channel audio signal to connect headphones

Data monitor: Captures and analyzes command data from the control device, can also send hex

Drop-down menu: You can choose PoE power switch, IP settings, CVBS, LAN information, etc. In any interface

External power supply DC 12V 1A

Operation setting OSD menu, select desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, etc

Automatic shutdown: 1-30 (min)

Operating temperature: -10ºC --- + 50ºC

Working humidity: 30% -90%

Set contents

Video Tester

AC adapter

Case

Accessories visible in photos

User manual

Cardboard packaging

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 36 x 183 x 110 mm (Depth x Width x Height)

Packaging dimensions: 120 x 200 x 60 mm (Depth x Width x Height)

Product weight: 400 g

Weight with packaging: 600 g
