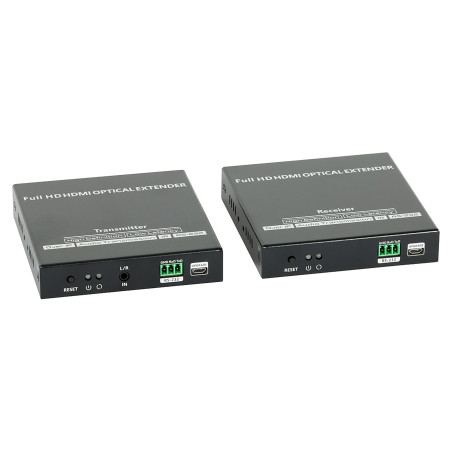

Single-mode fiber optic converter 40km IR LC Extender Full HD 1080p TX RX Video Audio Kit SIGNAL HDMI-OFT-20IR
zł 767,15
Tax included
The converter is an advanced technological solution designed for professional video and audio signal transmission in the HDMI standard over very long distances. By utilizing fiber optic technology, the device eliminates the limitations typical of copper HDMI cables or twisted-pair cables, offering a transmission range of up to 40 kilometers using single-mode fiber. It is an ideal solution for video surveillance systems, multimedia installations in large facilities, conference centers, and industry.
The main advantage of the kit is full support for Full HD 1080p resolution, which guarantees a crystal-clear image without delays or electromagnetic interference, to which fiber optics are completely immune. Additionally, the converter is equipped with an IR (infrared) remote control extender, which allows for remote control of the signal source (e.g., recorder, Blu-ray player, or set-top box) from the location where the receiver is situated.
The kit consists of a transmitter (TX) and a receiver (RX). The use of LC-type connectors ensures a stable and secure optical connection. The device is characterized by simple Plug & Play installation – it does not require complex configuration or the installation of additional drivers. The solid metal housing protects the electronics from mechanical damage and ensures optimal heat dissipation, which translates into longevity and trouble-free operation in 24/7 mode. By choosing this model, you are investing in the highest quality of transmission and reliability over distances unattainable by other technologies.
Single-mode fiber optic converter 40km IR LC Extender Full HD 1080p TX RX Video Audio Kit
Model: SIGNAL HDMI-OFT-20IR
EAN: 6931240057131 SKU: 931057130
- HDMI and IR signal transmission over a single fiber optic cable
- Very long transmission range up to 40 km
- Support for Full HD 1080p resolution at 60Hz
- Use of single-mode fiber (SMF)
- LC type optical connectors
- Built-in IR remote control extender (38 kHz)
- Total immunity to electromagnetic interference
- Robust metal housing for durability
- Plug & Play installation - no drivers required
- Set includes transmitter and receiver
Description
The converter is an advanced technological solution designed for professional video and audio signal transmission in the HDMI standard over very long distances. By utilizing fiber optic technology, the device eliminates the limitations typical of copper HDMI cables or twisted-pair cables, offering a transmission range of up to 40 kilometers using single-mode fiber. It is an ideal solution for video surveillance systems, multimedia installations in large facilities, conference centers, and industry.
The main advantage of the kit is full support for Full HD 1080p resolution, which guarantees a crystal-clear image without delays or electromagnetic interference, to which fiber optics are completely immune. Additionally, the converter is equipped with an IR (infrared) remote control extender, which allows for remote control of the signal source (e.g., recorder, Blu-ray player, or set-top box) from the location where the receiver is situated.
The kit consists of a transmitter (TX) and a receiver (RX). The use of LC-type connectors ensures a stable and secure optical connection. The device is characterized by simple Plug & Play installation – it does not require complex configuration or the installation of additional drivers. The solid metal housing protects the electronics from mechanical damage and ensures optimal heat dissipation, which translates into longevity and trouble-free operation in 24/7 mode. By choosing this model, you are investing in the highest quality of transmission and reliability over distances unattainable by other technologies.
Specification
Device type
HDMI to single-mode fiber optic extender
Transmission range
Up to 40 km (SMF 0-40km)
Transmitter inputs
1x HDMI, 1x JACK (IR Transmitter)
Transmitter outputs
1x LC (Optical)
Receiver inputs
1x LC (Optical), 1x JACK (IR Receiver)
Receiver outputs
1x HDMI
HDMI input resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
HDMI output resolutions
480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@50/60Hz
Optical parameters
Wavelength: 1310 nm / 1550 nm; Output power: ≥ -11 dBm; Receiver sensitivity: ≤ -32 dBm; Attenuation: ≤ 14 dB
Connector type
LC
IR frequency
38 kHz
Power supply
5V DC (external power supplies included)
Housing
Metal, black
Software and logic
The device operates based on a dedicated FPGA signal processor, which performs lossless compression and decompression of the video stream in real-time. The control logic ensures full synchronization of image frames and stability of audio data transmission. The system does not require external management software or driver installation, which eliminates the risk of operating system crashes and guarantees immediate readiness for operation after power-up. The processor automatically negotiates EDID parameters, adjusting the signal to the display's capabilities.
Contents
1x Transmitter (TX)
1x Receiver (RX)
1x IR Transmitter
1x IR Receiver
2x 5V DC power adapter
Dimensions, Weight
Product dimensions: 103 x 107 x 21 mm (D x W x H)
Package dimensions: 175 x 240 x 80 mm (D x W x H)
Product weight: 850 g
Weight with packaging: 1087 g
