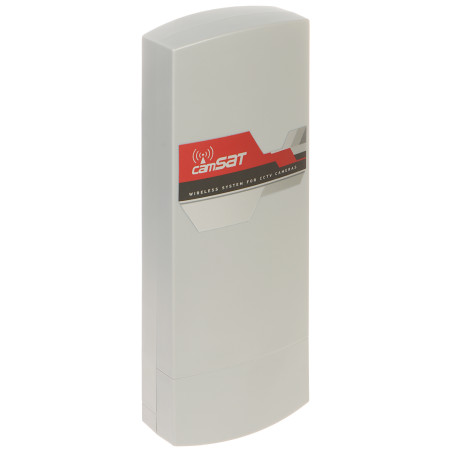

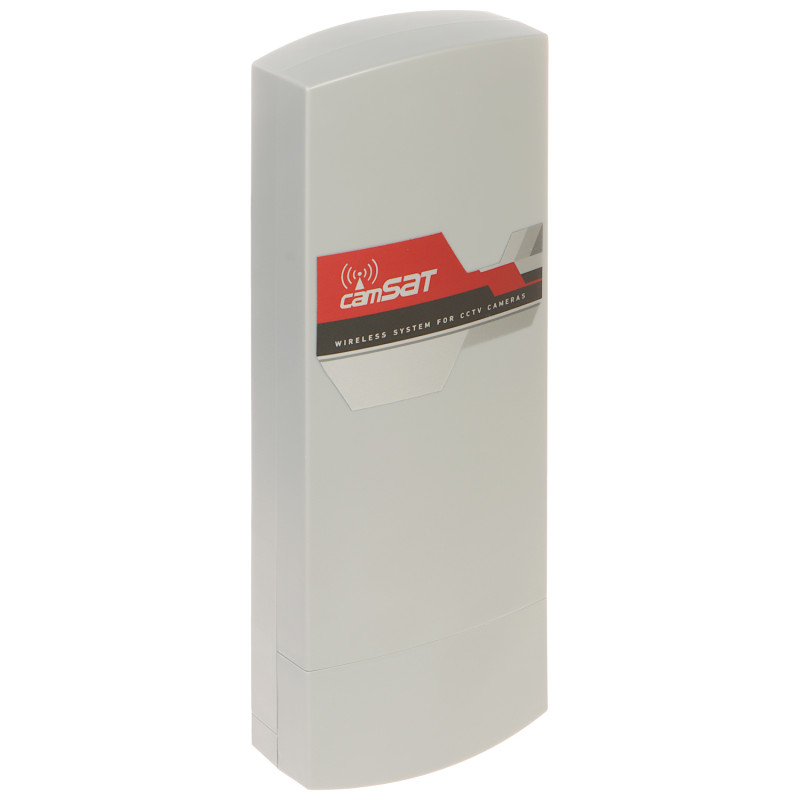

5.8 GHz Access Point for Full HD and 4K IP Camera Video Transmission CAMSAT CDS-6IP/ECO
zł 844,62
Tax included
The CDS-6IP/ECO wireless module is an advanced solution dedicated to professional video transmission in IP monitoring systems. The device is designed to support megapixel cameras and recorders operating in Full HD and 4K resolutions. Thanks to its unique design, the module functions as both a transmitter and a receiver (transceiver), which significantly simplifies the system installation and configuration process. One of the key advantages of this device is the high level of transmission security. By using 64/128/152-bit identification code encryption, the user gains assurance that the transmitted image is effectively protected against unauthorized viewing by third parties.
The device is equipped with an integrated 5GHz MIMO dual antenna with a gain of 2 x 13 dBi, which allows for a stable connection even at varying distances. The system enables precise antenna tuning, which translates into high transmission quality in difficult terrain conditions. The CDS-6IP/ECO operates in the 5.8 GHz band, ensuring transmission free from interference generated by standard 2.4 GHz Wi-Fi networks, Bluetooth, or other radio devices. A robust IP55-rated housing guarantees reliable operation in harsh weather conditions, making it an ideal choice for outdoor installations. The device supports operation in Point-to-Point and Point-to-Multipoint configurations, offering the flexibility necessary for expanding monitoring systems.
5.8 GHz Access Point for Full HD and 4K IP Camera Video Transmission
Model: CAMSAT CDS-6IP/ECO
EAN: 6931240020388 SKU: 931020389
- Video transmission for Full HD / 4K IP cameras
- Transceiver device (transmitter and receiver in one)
- 64/128/152-bit identification code encryption
- Built-in 5GHz MIMO dual antenna (2 x 13 dBi)
- Operation in the interference-free 5.8 GHz band
- Support for Point-to-Point and Point-to-Multipoint configurations
- IP55 ingress protection rating
- IP PTZ control
Description
The CDS-6IP/ECO wireless module is an advanced solution dedicated to professional video transmission in IP monitoring systems. The device is designed to support megapixel cameras and recorders operating in Full HD and 4K resolutions. Thanks to its unique design, the module functions as both a transmitter and a receiver (transceiver), which significantly simplifies the system installation and configuration process. One of the key advantages of this device is the high level of transmission security. By using 64/128/152-bit identification code encryption, the user gains assurance that the transmitted image is effectively protected against unauthorized viewing by third parties.
The device is equipped with an integrated 5GHz MIMO dual antenna with a gain of 2 x 13 dBi, which allows for a stable connection even at varying distances. The system enables precise antenna tuning, which translates into high transmission quality in difficult terrain conditions. The CDS-6IP/ECO operates in the 5.8 GHz band, ensuring transmission free from interference generated by standard 2.4 GHz Wi-Fi networks, Bluetooth, or other radio devices. A robust IP55-rated housing guarantees reliable operation in harsh weather conditions, making it an ideal choice for outdoor installations. The device supports operation in Point-to-Point and Point-to-Multipoint configurations, offering the flexibility necessary for expanding monitoring systems.
Specification
Frequency range
5180 MHz ... 5350 MHz, 5470 MHz ... 5725 MHz
Security
64 / 128 / 152-bit WEP, WPA, WPA-PSK/WPA2-PSK code
Transmitter power
≤ 500 mW (27 dBm)
Wireless transmission range
max. 2 km
Antenna type
Integrated, 2 pcs. 14 dBi MIMO - Interpolary H/V
Modulation type
OFDM (Orthogonal Frequency Division Multiplexing) – a digital transmission technique that involves the simultaneous transmission of multiple slower data streams on mutually orthogonal frequencies, which effectively eliminates multipath and inter-symbol interference.
Transmission speed
max. 60 Mbps
Operating modes
Video Bridge (dedicated for IP cameras), Master (Access Point), Slave (AP Client)
Power supply
Passive PoE 48V DC (external adapter) or 12V DC / 1A (power supply included)
Power consumption
≤ 11 W
Selected features
Point-to-Point/Point-to-Multipoint operation, MIMO technology, Bidirectional communication, IP PTZ control, Radio power adjustment, Resistance to industrial and network interference
Ingress protection rating
IP55
Operating temperature
-20 °C ... 70 °C
Software and interface
The device has a built-in configuration interface accessible via a web browser, which allows for full management of radio and network parameters. The software allows for precise setting of operating modes (Bridge, AP, Client), security management (WEP, WPA/WPA2), as well as real-time signal quality monitoring. The interface offers advanced diagnostic functions, such as spectrum analysis, which allows for transmission optimization in environments with high wireless network density. The system supports remote firmware updates, ensuring access to the latest security patches and video transmission performance optimizations. The intuitive menu allows for quick configuration of PTZ parameters, which is crucial when operating PTZ cameras in IP monitoring systems.
Contents
1x CDS-6IP/ECO Access Point
1x 12V/1A Power supply
Mounting elements
Dimensions, Weight
Product dimensions: 52 x 249 x 88 mm (D x W x H)
Package dimensions: 70 x 340 x 98 mm (D x W x H)
Product weight: 350 g
Weight with packaging: 592 g
