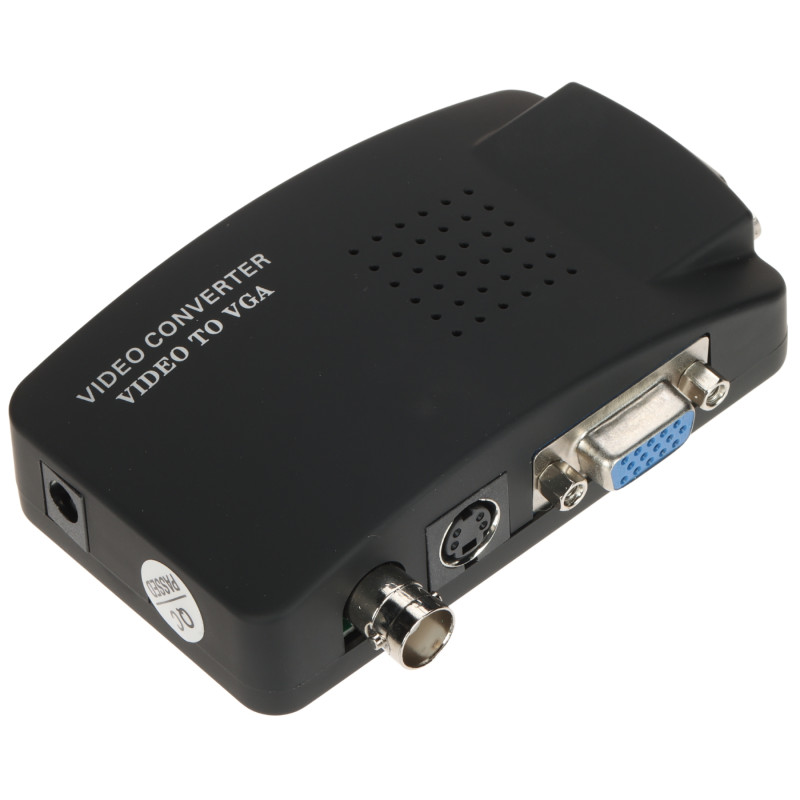

Composite BNC S-Video to VGA Full HD 1920x1200 OSD PIP Monitor Adapter Delta VGA-1920F
zł 146,37
Tax included
The VGA-1920F converter is a professional electronic device designed for high-quality conversion of analog Composite Video (BNC connector) and S-Video signals to VGA, commonly used in computer monitors and projectors. It is an ideal solution for CCTV systems, allowing direct connection of analog cameras to affordable and widely available PC monitors without the need for recorders or specialized displays.
The device supports a wide range of output resolutions, including Full HD 1080p and WUXGA 1920x1200 standards, ensuring a sharp and clear image on modern LCD panels. Thanks to support for various aspect ratios (4:3, 16:9, 16:10), the converter is extremely versatile and adapts to any type of display. An additional advantage is the VGA bypass input, which allows simultaneous connection of a computer and a video source to a single monitor.
A key feature of the VGA-1920F model is the built-in OSD menu, which allows the user full control over image parameters such as brightness, contrast, saturation, and hue. The PIP (Picture in Picture) function enables video preview in a window over the computer desktop, significantly increasing work comfort. All entered settings are saved in the device's internal memory, so there is no need for reconfiguration after power loss. Solid construction, compact dimensions, and the included power adapter make it a product ready for operation in demanding installation conditions.
Composite BNC S-Video to VGA Full HD 1920x1200 OSD PIP Monitor Adapter
Model: Delta VGA-1920F
EAN: 6931240086056 SKU: 931086050
- Conversion of Composite Video (BNC) and S-Video signals to VGA
- Support for high resolutions up to 1920x1200 (WUXGA) and Full HD 1080p
- Built-in OSD menu for image parameter adjustment
- PIP (Picture in Picture) function
- VGA bypass input for computer connection
- Support for 4:3, 16:9, and 16:10 aspect ratios
- Automatic PAL and NTSC system detection
- Settings memory after power disconnection
- Compact housing and easy Plug & Play installation
- 5V/1A power adapter included
Description
The VGA-1920F converter is a professional electronic device designed for high-quality conversion of analog Composite Video (BNC connector) and S-Video signals to VGA, commonly used in computer monitors and projectors. It is an ideal solution for CCTV systems, allowing direct connection of analog cameras to affordable and widely available PC monitors without the need for recorders or specialized displays.
The device supports a wide range of output resolutions, including Full HD 1080p and WUXGA 1920x1200 standards, ensuring a sharp and clear image on modern LCD panels. Thanks to support for various aspect ratios (4:3, 16:9, 16:10), the converter is extremely versatile and adapts to any type of display. An additional advantage is the VGA bypass input, which allows simultaneous connection of a computer and a video source to a single monitor.
A key feature of the VGA-1920F model is the built-in OSD menu, which allows the user full control over image parameters such as brightness, contrast, saturation, and hue. The PIP (Picture in Picture) function enables video preview in a window over the computer desktop, significantly increasing work comfort. All entered settings are saved in the device's internal memory, so there is no need for reconfiguration after power loss. Solid construction, compact dimensions, and the included power adapter make it a product ready for operation in demanding installation conditions.
Specification
Device type
Analog to VGA signal converter
Video inputs
1x Video Composite (BNC socket), 1x S-VIDEO, 1x VGA (bypass)
Video outputs
1x VGA (D-Sub 15-pin)
Input signal standards
PAL, NTSC, VGA (bypass)
Supported 4:3 resolutions
800 x 600 @ 60/75 Hz, 1024 x 768 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1600 x 1200 @ 60 Hz
Supported 16:9 / 16:10 resolutions
1280 x 720 @ 60 Hz, 1366 x 768 @ 60 Hz, 1440 x 900 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz, 1920 x 1200 @ 60 Hz
Image correction functions
Brightness, contrast, saturation, hue
OSD menu
Yes, built-in graphical interface for configuration
Settings memory
Non-volatile internal memory (retains data after power loss)
PIP function
Picture in Picture - displaying video image over VGA signal
Power supply
5 V DC / 1 A (mains adapter included)
Format support
Full compatibility with 4:3, 16:9, and 16:10 screens
Application
CCTV monitoring, connecting analog cameras to PC monitors, video players
Software and interface
The converter's built-in firmware offers an advanced image processing engine that scales the analog signal to high digital resolutions in real-time. The user interface, implemented via the On-Screen Display (OSD) menu, allows for full personalization of the displayed image, including precise tuning of parameters such as brightness, contrast, and saturation. The software supports intelligent signal source switching and the Picture-in-Picture (PIP) function, which allows overlaying a video preview onto the computer signal. The system automatically recognizes PAL/NTSC standards and optimizes the refresh rate, which eliminates image flickering and ensures smooth transmission without visible delays.
Contents
1x VGA-1920F converter
1x 5V/1A mains adapter
1x User manual
Dimensions, Weight
Product dimensions: 26 x 100 x 65 mm (D x W x H)
Package dimensions: 60 x 220 x 150 mm (D x W x H)
Product weight: 70 g
Weight with packaging: 338 g
