- New
HDMI 4K UHD 70m Extender via RJ45 Cable with Splitter and IR Remote Transmission HDMI Loop-out Delta Multimedia HDMI-SP-EX-6IR-V
zł 332,59
Tax included
The professional HDMI-SP-EX-6IR-V4 extender set is an advanced technological solution enabling the transmission of high-quality video and audio signals over significant distances. The device allows for the transmission of 4K UHD signals up to 40 meters and Full HD 1080p signals up to 70 meters using a standard Category 6 computer cable. It is an ideal solution in places where installing long and expensive HDMI cables is impossible or uneconomical.The main advantage of this model is the integrated HDMI splitter in the transmitter (so-called loop-out), which allows for the simultaneous connection of a local monitor directly at the signal source and a remote receiver in another location. Thanks to this solution, the user has full control over the displayed image at both points without the need for additional splitters.The set supports IR remote control signal transmission in a wide frequency range (20-60 kHz), which enables remote control of the image source (e.g., Blu-ray player, satellite decoder, or DVR/NVR recorder) from the room where the end receiver is located.The device is characterized by high reliability and full support for modern audio formats such as PCM, AC3, and DTS, which guarantees crystal-clear surround sound. The solid metal construction ensures optimal heat dissipation and resistance to electromagnetic interference, while the compact dimensions facilitate discreet mounting behind a TV or in an AV cabinet. The product is dedicated to professional video surveillance systems, AV installations in conference rooms, and advanced home entertainment systems.

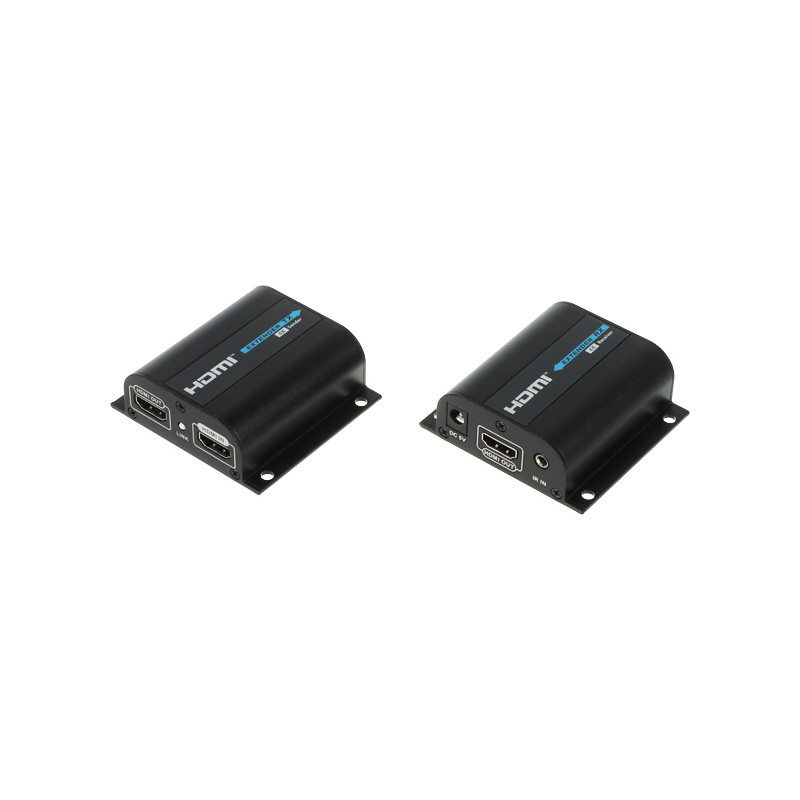

HDMI 4K UHD 70m Extender via RJ45 Cable with Splitter and IR Remote Transmission HDMI Loop-out
Model: Delta Multimedia HDMI-SP-EX-6IR-V4
EAN: 6931240090381 SKU: 931090387
- HDMI signal transmission via a single Cat 6 UTP cable
- Support for 4K UHD (3840x2160) and Full HD resolutions
- Built-in HDMI splitter (loop-out) in the transmitter
- Maximum range up to 70 meters for 1080p
- Maximum range up to 40 meters for 4K UHD
- IR remote control signal transmission (20-60 kHz)
- Support for PCM, AC3, DTS audio formats
- Compact and durable metal housing
- 5V/2A power adapter included for stable operation
Description
The professional HDMI-SP-EX-6IR-V4 extender set is an advanced technological solution enabling the transmission of high-quality video and audio signals over significant distances. The device allows for the transmission of 4K UHD signals up to 40 meters and Full HD 1080p signals up to 70 meters using a standard Category 6 computer cable. It is an ideal solution in places where installing long and expensive HDMI cables is impossible or uneconomical.
The main advantage of this model is the integrated HDMI splitter in the transmitter (so-called loop-out), which allows for the simultaneous connection of a local monitor directly at the signal source and a remote receiver in another location. Thanks to this solution, the user has full control over the displayed image at both points without the need for additional splitters.The set supports IR remote control signal transmission in a wide frequency range (20-60 kHz), which enables remote control of the image source (e.g., Blu-ray player, satellite decoder, or DVR/NVR recorder) from the room where the end receiver is located.The device is characterized by high reliability and full support for modern audio formats such as PCM, AC3, and DTS, which guarantees crystal-clear surround sound. The solid metal construction ensures optimal heat dissipation and resistance to electromagnetic interference, while the compact dimensions facilitate discreet mounting behind a TV or in an AV cabinet. The product is dedicated to professional video surveillance systems, AV installations in conference rooms, and advanced home entertainment systems.Specification
Supported HDMI resolutions
4K UHD (3840 x 2160 px), 1080p, 1080i, 720p, 1680 x 1050, 1440 x 900, 1366 x 768, 1280 x 960, 1024 x 768, 800 x 600
Maximum 1080p transmission range
70 meters - Cat 6 UTP
Maximum 4K UHD transmission range
40 meters - Cat 6 UTP
Supported audio formats
PCM, AC3, DTS
Power supply
5 V DC / 2 A (power adapter included)
IR receiver
Operating range 20 kHz ... 60 kHz
Selected features
HDMI Loop-out function (local output on transmitter), Automatic transmission parameter compensation, Metal housing for better shielding, Support for HDCP standard
Warranty
2 years (24 months)
Technical details
The device uses digital transmission protocols ensuring lossless image quality while maintaining minimal latency. Thanks to 4K UHD support, the image is characterized by exceptional detail. IR pass-through technology allows for seamless operation of AV devices from another room. Note: when connecting to a 230V network with high interference, occasional device resets may occur.
Contents
1x Transmitter (TX)
1x Receiver (RX)
1x 5V/2A Power adapter
1x IR transmitter
1x IR receiver
Dimensions, Weight
Product dimensions: 25 x 68 x 71 mm (D x W x H)
Package dimensions: 85 x 205 x 150 mm (D x W x H)
Product weight: 85 g
Weight with packaging: 443 g
Zum Download
931090387
17 Items
Specific References
- ean13
- 6931240090381
