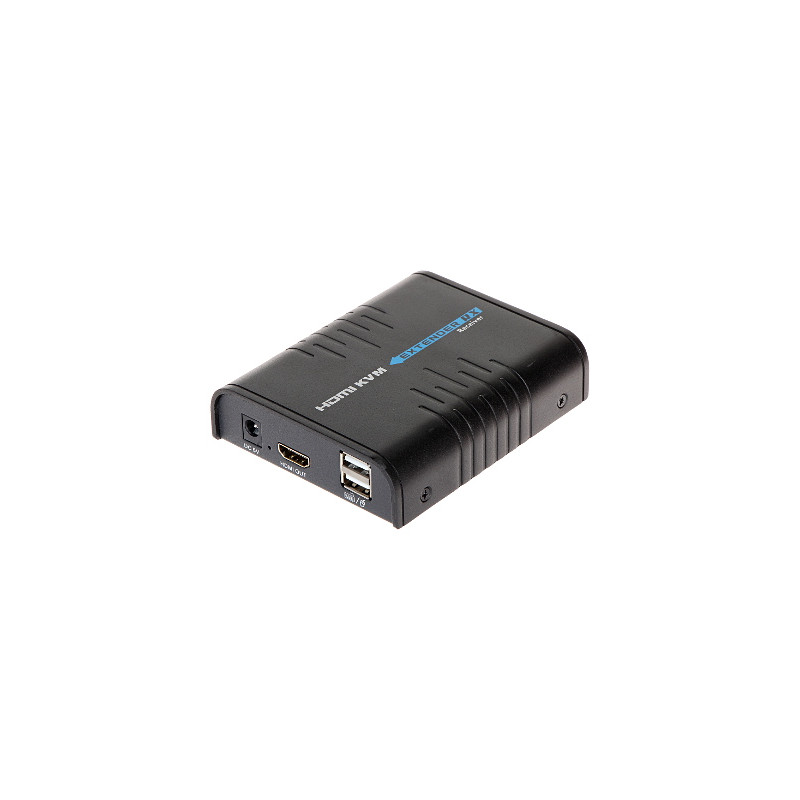

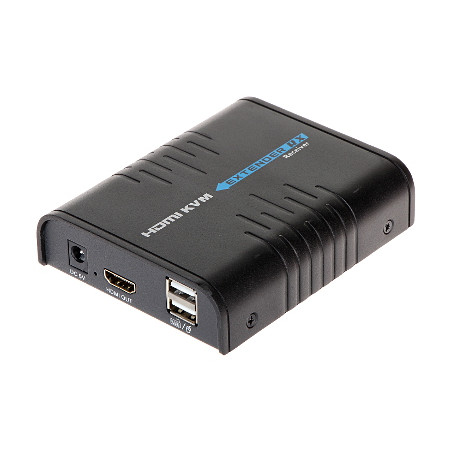

HDMI and USB extender receiver over UTP RJ45 HDbitT range up to 100m Full HD 1080p mouse control LAN SIGNAL HDMI+USB-EX-100/RX
zł 268,63
Tax included
The HDMI+USB-EX-100/RX receiver is an advanced component of a high-resolution signal extension system that redefines how multimedia is transmitted in professional and home AV installations. Operating on the innovative HDbitT protocol, this device enables the reception of crystal-clear Full HD 1080p images over a distance of up to 100 meters using only a standard Category 5e or 6 twisted pair cable. A key advantage of this model is the integrated USB module, which allows for the extension of a USB 2.0 port. In practice, this means the user can remotely control a DVR/NVR, computer, or media player using a mouse connected directly to the receiver located at the monitor.
Using a single UTP cable instead of thick and expensive HDMI cables significantly reduces installation costs, facilitates routing in cable ducts, and improves the aesthetics of the entire setup. Another significant advantage is full compatibility with LAN network infrastructure. The receiver does not need to be connected directly to the transmitter – the signal can be transmitted via network switches, allowing for the creation of extensive point-to-multipoint image distribution systems. The device also supports audio transmission directly over the network, eliminating the need for additional audio cables. The solid metal construction and wide operating temperature range guarantee reliability even in demanding industrial conditions. This is an ideal solution for modern CCTV monitoring systems, conference rooms, retail displays, and advanced home entertainment centers where remote control over the signal source is required.
HDMI and USB extender receiver over UTP RJ45 HDbitT range up to 100m Full HD 1080p mouse control LAN
Model: SIGNAL HDMI+USB-EX-100/RX
EAN: 6931240044353 SKU: 931044355
- HDMI signal reception via a single UTP Cat. 5e/6 twisted pair cable
- Transmission range up to 100 meters in Full HD resolution
- USB 2.0 port extension for mouse control (KVM)
- Operates based on the stable and modern HDbitT protocol
- Capability to work in a local LAN network via standard switches
- Supports resolutions up to 1080p (Full HD) at 50/60Hz
- Integrated audio signal transmission along with video
- Robust housing ensuring optimal heat dissipation
- 5V DC / 1A power adapter included for full stability
- Easy Plug & Play installation requiring no configuration
Description
The HDMI+USB-EX-100/RX receiver is an advanced component of a high-resolution signal extension system that redefines how multimedia is transmitted in professional and home AV installations. Operating on the innovative HDbitT protocol, this device enables the reception of crystal-clear Full HD 1080p images over a distance of up to 100 meters using only a standard Category 5e or 6 twisted pair cable. A key advantage of this model is the integrated USB module, which allows for the extension of a USB 2.0 port. In practice, this means the user can remotely control a DVR/NVR, computer, or media player using a mouse connected directly to the receiver located at the monitor.
Using a single UTP cable instead of thick and expensive HDMI cables significantly reduces installation costs, facilitates routing in cable ducts, and improves the aesthetics of the entire setup. Another significant advantage is full compatibility with LAN network infrastructure. The receiver does not need to be connected directly to the transmitter – the signal can be transmitted via network switches, allowing for the creation of extensive point-to-multipoint image distribution systems. The device also supports audio transmission directly over the network, eliminating the need for additional audio cables. The solid metal construction and wide operating temperature range guarantee reliability even in demanding industrial conditions. This is an ideal solution for modern CCTV monitoring systems, conference rooms, retail displays, and advanced home entertainment centers where remote control over the signal source is required.
Specification
Device type
Receiver unit for the extender system designed to work with the HDMI+USB-EX-100 series transmitters.
Supported resolutions
Full range of standard video resolutions: 480i, 480p, 576i, 576p, 720p (HD Ready), 1080i, and 1080p (Full High Definition).
Maximum transmission range
Up to 100 meters using a Category 5e or 6 UTP twisted pair cable, ensuring stable data transfer.
Communication protocol
HDbitT (High-Definition Digital Network Transport Protocol) - an advanced protocol for multimedia data transmission in IP networks.
USB KVM function
Support for USB 2.0 port extension, primarily dedicated to controlling video recorders or computers using a computer mouse.
Network transmission
The device supports transmission via standard LAN infrastructure (switches, routers), which enables signal distribution in a multipoint topology.
Audio transmission
Digital audio transmission integrated with the HDMI signal, realized in real-time over the network.
Unit power supply
Requires 5V DC voltage; maximum power consumption is 1A. A dedicated power adapter is included.
Environmental conditions
Operating temperature ranges from -10 °C to 60 °C; permissible relative ambient humidity is from 20% to 90% (non-condensing).
Physical parameters
Compact housing with dimensions of 110 x 89 x 26 mm facilitates installation in hard-to-reach places or behind TV mounts.
Device weight
The net weight of the receiver is 0.168 kg, which confirms the use of solid construction materials.
Warranty
The manufacturer's warranty period is 2 years (24 months) from the date of purchase.
Installation notes
The device is mounted on the display side (monitor/TV). The signal bitrate is approximately 20 Mb/s.
System software
The HDbitT (High-Definition Digital Network Transport Protocol) is an advanced solution for transmitting image and sound over IP networks. The device firmware manages dynamic image compression, optimizing the bandwidth to approximately 20 Mb/s, which allows for smooth Full HD content display without noticeable latency. This system intelligently manages USB data packets, enabling seamless bidirectional communication for pointing devices. Additionally, the software supports IGMP standards, which is crucial for signal distribution within existing local networks, preventing their overload by multicast traffic.
Contents
1x HDMI+USB-EX-100/RX Receiver
1x 5V DC / 1A Power adapter
1x User manual
Dimensions, Weight
Product dimensions: 26 x 110 x 89 mm (D x W x H)
Package dimensions: 80 x 150 x 120 mm (D x W x H)
Product weight: 168 g
Weight with packaging: 398 g
