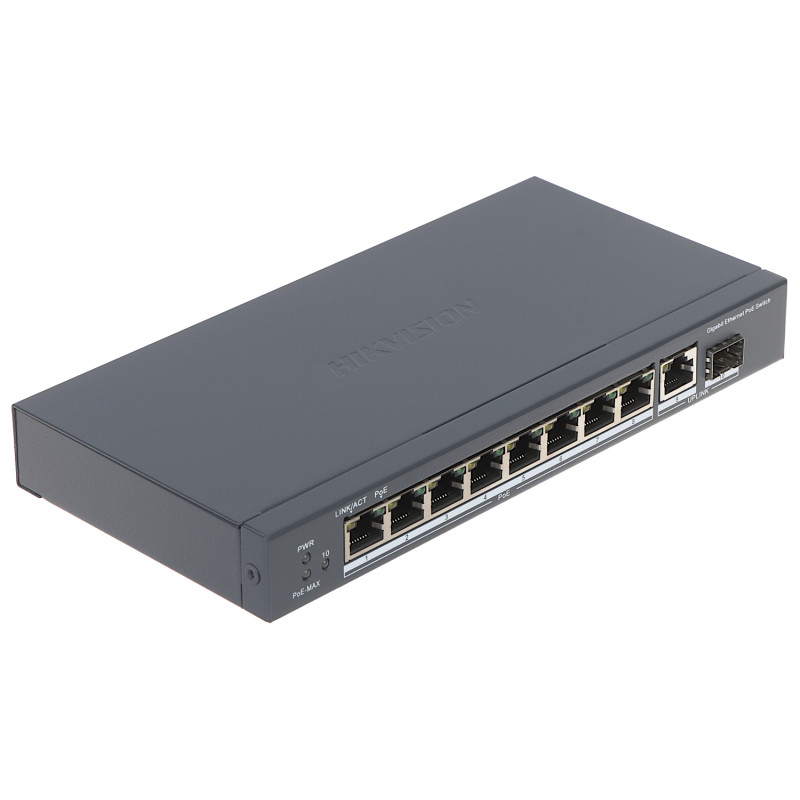

8-Port Gigabit PoE Switch with SFP Slot for IP CCTV Surveillance Network Switch

Model: Hikvision DS-3E0510P-E

EAN: 6931240073483 SKU: 931073486

• 8 RJ45 10/100/1000 Mbps ports with PoE support (802.3af/at)
• 1 Uplink RJ45 10/100/1000 Mbps port for a stable connection to the backbone network
• 1 Uplink SFP 10/100/1000 Mbps port for long-range fiber optic transmission
• Total PoE power budget of up to 110W
• Maximum power per single port up to 30W
• Integrated 6kV surge protection for all PoE ports
• Intelligent PoE technology for optimal power distribution
• Support for Auto-MDI/MDIX – no need for crossover cables
• Durable metal housing designed for continuous operation
• Unmanaged Plug & Play device – quick and easy installation

Description

The Hikvision DS-3E0510P-E PoE switch is a professional, unmanaged Layer 2 network switch designed for IP video surveillance systems and modern network installations requiring high bandwidth. The device offers top-tier performance through the use of 8 Gigabit Ethernet (10/100/1000 Mbps) ports, which ensures smooth high-resolution image transmission without delays or interference.

The main advantage of the switch is full support for Power over Ethernet (PoE+) technology, allowing for simultaneous data and power transmission to end devices, such as IP cameras, VoIP phones, or WiFi access points, via a single UTP cable. This makes installation simpler, cheaper, and more aesthetic, eliminating the need to run additional power cables.

The device distinguishes itself with intelligent power management – in situations where total power consumption approaches the 110W limit, the switch automatically optimizes energy distribution, protecting the system from overload. A robust metal housing provides excellent heat dissipation and resistance to mechanical damage, making it an ideal solution for demanding applications. Additionally, the presence of a dedicated SFP port allows for easy network expansion using fiber optic connections, ensuring stable transmission over long distances that exceed the capabilities of traditional copper twisted-pair cabling.

Advantages of the device:

- High Gigabit bandwidth on all working ports.

- Support for IEEE 802.3af/at standards (up to 30W per port).

- Dedicated SFP port for fiber optic connectivity.

- Reinforced surge protection up to 6kV.

- Intuitive Plug & Play operation without the need for configuration.

- Durable industrial metal construction.

Specification

Device type

PoE switch, unmanaged, industrial Layer 2, dedicated for IP CCTV systems and high-performance backbone networks.

LAN ports

8 x RJ45 10/100/1000 Base-TX with PoE power support (802.3af/at). Each port provides high-speed Gigabit communication for IP cameras and terminals.

Uplink ports

1 x RJ45 10/100/1000 Base-TX (copper) and 1 x SFP 10/100/1000 Base-TX port (requires SFP module purchase). Both ports operate independently, providing connection flexibility.

Transmission speed

10 / 100 / 1000 Mbps for all 8 LAN & PoE ports and both Uplink ports. Automatic connection speed negotiation on each port.

PoE standards

Compliance with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+). The device automatically recognizes devices requiring power and selects appropriate parameters.

PoE output power

Maximum 30 W per single PoE port. Total power budget for all connected devices is 110 W, which allows powering PTZ cameras or IR illuminators.

Power management

Intelligent PoE Management function. The system monitors power consumption in real-time. In case of overload (above 110W), power to lower-priority ports is limited to protect the stability of critical connections.

Switching performance

Internal Switching Capacity at 20 Gbps. Packet Forwarding Rate is 14.88 Mpps, eliminating network bottlenecks.

MAC address table

4k capacity with auto-learning and auto-aging functions for addresses, ensuring efficient network traffic routing.

Protection and certificates

Built-in 6 kV surge protection for PoE ports, protecting against atmospheric discharges. Compliance certificates: CE, FCC, RoHS.

LED signaling

Complete set of indicator LEDs: Power, Link/Act (connection status and port activity), PoE (power status on ports), PoE Max (information about approaching the power limit).

Software and Logical Functions

The device operates based on stable Hikvision firmware for unmanaged switches. It implements Store-and-Forward mechanisms ensuring data integrity. It supports IEEE 802.3x Flow Control for Full-Duplex mode and Back Pressure for Half-Duplex, which prevents packet loss under heavy load. Intelligent PoE algorithms monitor the state of each port, ensuring the safety of connected equipment by verifying voltage and current consumption.

Operating conditions

Wide operating temperature range from -10 °C to 55 °C allows installation in places with variable thermal conditions. Permissible ambient humidity: 5% - 95% (non-condensing).

Physical parameters

Housing made entirely of metal, ensuring passive cooling without noisy fans. Device dimensions: 218 x 109 x 28 mm. Net weight: 0.58 kg.

System power supply

Input voltage 48 V DC / 2.5 A. Included is a dedicated 230V AC power supply adapted for the full PoE load of the device.

Contents

1x PoE Switch DS-3E0510P-E

1x 48V DC power adapter

1x User manual

Dimensions, Weight

Product dimensions: 109 x 218 x 28 mm (D x W x H)

Package dimensions: 140 x 265 x 95 mm (D x W x H)

Product weight: 580 g

Weight with packaging: 1350 g
