- New

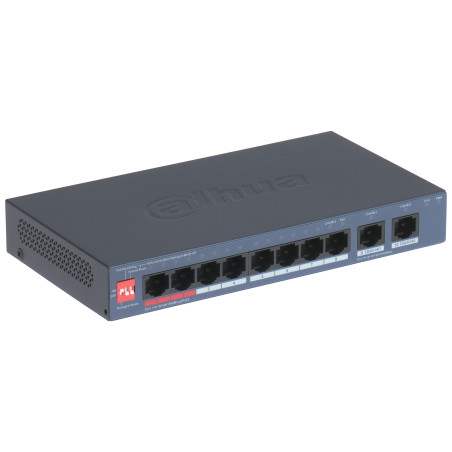

Manageable Gigabit PoE Switch 10-port 8xPoE 2xUplink Hi-PoE 90W Cloud DAHUA CS4010-8GT-110
zł 554,73
Tax included
The CS4010-8GT-110 PoE switch is a professional network solution designed for modern IP monitoring systems and advanced office networks. The device offers a total of 10 Gigabit ports (10/100/1000 Mbps), of which 8 ports support Power over Ethernet (PoE) technology. A unique feature of this model is the support for the Hi-PoE standard on the first two ports, allowing for the powering of demanding devices such as PTZ cameras with up to 90W per port. The greatest advantage of the switch is its intelligent management. The user has access to an intuitive web interface and innovative cloud management via the DoLynk Care application. Thanks to this, the network administrator can monitor the system status and configure parameters from anywhere in the world. The solid metal desktop housing provides excellent heat dissipation and durability, while built-in surge protection protects connected devices from atmospheric discharges. The switch supports advanced features such as PoE Watchdog, which automatically restarts frozen cameras, and Extend mode, allowing for data and power transmission up to 250 meters. It is the ideal choice for installers looking for reliability, high gigabit performance, and ease of remote network diagnostics.
Manageable Gigabit PoE Switch 10-port 8xPoE 2xUplink Hi-PoE 90W Cloud
Model: DAHUA CS4010-8GT-110
EAN: 6931240051382 SKU: 931051384
- 8 Gigabit PoE ports (including 2 Hi-PoE 90W ports)
- 2 dedicated Gigabit RJ45 Uplink ports
- Management via web browser and DoLynk Care cloud
- Support for IEEE802.3af, IEEE802.3at, and IEEE802.3bt (Hi-PoE) standards
- PoE Watchdog function - automatic recovery of suspended devices
- Extend mode allowing for range up to 250m at 10 Mbps
- Surge protection 6kV and ESD 8kV
- Solid metal desktop housing with wall-mount capability
- VLAN (Port Based), STP/RSTP, and LLDP protocol support
- Fanless design - silent operation and high reliability
Description
The CS4010-8GT-110 PoE switch is a professional network solution designed for modern IP monitoring systems and advanced office networks. The device offers a total of 10 Gigabit ports (10/100/1000 Mbps), of which 8 ports support Power over Ethernet (PoE) technology. A unique feature of this model is the support for the Hi-PoE standard on the first two ports, allowing for the powering of demanding devices such as PTZ cameras with up to 90W per port.
The greatest advantage of the switch is its intelligent management. The user has access to an intuitive web interface and innovative cloud management via the DoLynk Care application. Thanks to this, the network administrator can monitor the system status and configure parameters from anywhere in the world. The solid metal desktop housing provides excellent heat dissipation and durability, while built-in surge protection protects connected devices from atmospheric discharges. The switch supports advanced features such as PoE Watchdog, which automatically restarts frozen cameras, and Extend mode, allowing for data and power transmission up to 250 meters. It is the ideal choice for installers looking for reliability, high gigabit performance, and ease of remote network diagnostics.Specification
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
LAN Ports
8 x RJ45 10/100/1000 Base-T (2 x Hi-PoE / PoE 802.3bt + 6 x PoE 802.3af/at), 2 x RJ45 10/100/1000 Base-T - Uplink
Transmission Speed
10 / 100 / 1000 Mbps for all ports (8 LAN/PoE ports + 2 Uplink ports)
PoE Output Power
Maximum 90W for ports 1 and 2 (Hi-PoE 802.3bt), maximum 30W for ports 3 to 8 (802.3af/at)
PoE Power Budget
Total maximum power budget for all connected devices is 110W
MAC Address Table
8k - allows for stable support of a large number of devices on the network
Management and Configuration
Built-in WEB server (management via browser) and full support for the DoLynk Care cloud platform
Extend Mode (Range)
Capability to operate at distances up to 250 meters with speed limited to 10 Mbps on Cat. 5e/6 UTP cable
DoLynk Care Software
The DoLynk Care application is a modern tool for managing network infrastructure from the cloud. It enables remote device configuration, real-time port status monitoring, and immediate alerts in case of failures or device disconnections. The system offers a clear graphical interface, facilitating the management of multiple locations simultaneously without the need for complex VPN tunnels or port forwarding. It provides full network diagnostics, topology visualization, event logging, and remote firmware updates for the switch.
Layer 2 Features
Port Based VLAN (up to 32 groups), Spanning Tree STP/RSTP, Flow Control (802.3x), DHCP Client, LLDP Protocol
Security and Protection
Surge protection (common/differential): 6 / 1 kV; ESD protection: 6 kV (contact) / 8 kV (air); Loop Protection
Power Parameters
Input voltage: 54 V DC; Current: 2.22 A; Device power consumption: max. 115 W at full PoE load
Operating Conditions
Operating temperature: -10 °C to 55 °C; Humidity: 10% - 90% (non-condensing)
Design
Metal desktop housing, black color, passive cooling, dimensions 185 x 103 x 27 mm
Contents
1x PoE Switch CS4010-8GT-110
1x Power adapter 54V/2.22A
1x Power cable
1x User manual
Dimensions, Weight
Product dimensions: 103 x 185 x 27 mm (D x W x H)
Package dimensions: 135 x 250 x 110 mm (D x W x H)
Product weight: 382 g
Weight with package: 1145 g
