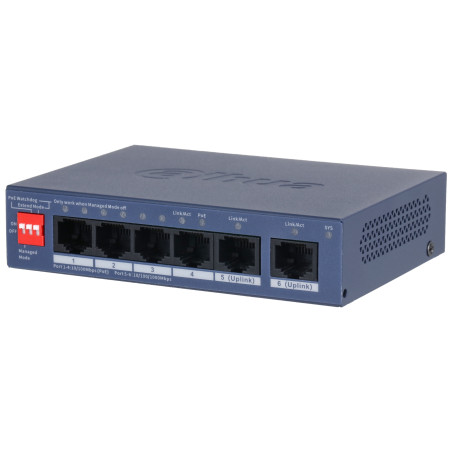

4-Port 10/100 Mbps PoE Switch with 2 Gigabit Uplink Ports Cloud Managed DAHUA CS4006-4ET2GT-36
zł 213,53
Tax included
A high-performance and reliable 4-port PoE switch is the perfect solution for modern IP surveillance systems as well as home and office networks. The device is designed to provide stable data transmission and effective power supply for terminal devices such as IP cameras, access points, or VoIP phones. Thanks to Plug and Play technology, installation is extremely simple and does not require complicated initial configuration.
The main advantage of the switch is its support for PoE 802.3af/at standards, allowing electrical power and data to be transmitted over a single twisted-pair cable. This solution significantly reduces installation costs and eliminates the need to install additional power sockets near each device. Additionally, this model offers an innovative Extend mode, which enables data and power transmission over an impressive distance of up to 250 meters at 10 Mbps, which is crucial for extensive outdoor installations.
Network security is a priority, which is why the device is equipped with advanced protective features. Built-in surge protection shields the electronics against the effects of atmospheric discharges and sudden voltage spikes. The PoE Watchdog function automatically monitors the status of connected devices and performs a port reboot in case of no response, minimizing the need for physical service intervention. The metal desktop-style enclosure ensures excellent heat dissipation and resistance to mechanical damage.
System management is carried out through an intuitive browser interface and the advanced DoLynk Care cloud application. This allows for full network control from anywhere, real-time power consumption monitoring, and instant fault diagnostics. This professional tool combines the performance of enterprise-class switches with the simplicity of consumer devices.
4-Port 10/100 Mbps PoE Switch with 2 Gigabit Uplink Ports Cloud Managed
Model: DAHUA CS4006-4ET2GT-36
EAN: 6931240062944 SKU: 931062943
- 4 x 10/100 Base-T RJ45 ports with PoE support (802.3af/at)
- 2 x 10/100/1000 Base-T RJ45 uplink ports for high-speed connections to recorders or routers
- Management via web interface and the dedicated DoLynk Care cloud platform
- Extend mode allowing for a range of up to 250m on Cat. 5e/6 UTP cable
- PoE Watchdog function - automatic reboot of unresponsive terminal devices
- 4kV surge protection and 8kV ESD protection for increased durability
- Solid metal desktop enclosure for optimal cooling
- Loop Protection technology support to prevent network loops
- LLDP protocol compliance for automatic network topology detection
- Wall-mount capability for installation flexibility
Description
A high-performance and reliable 4-port PoE switch is the perfect solution for modern IP surveillance systems as well as home and office networks. The device is designed to provide stable data transmission and effective power supply for terminal devices such as IP cameras, access points, or VoIP phones. Thanks to Plug and Play technology, installation is extremely simple and does not require complicated initial configuration.
The main advantage of the switch is its support for PoE 802.3af/at standards, allowing electrical power and data to be transmitted over a single twisted-pair cable. This solution significantly reduces installation costs and eliminates the need to install additional power sockets near each device. Additionally, this model offers an innovative Extend mode, which enables data and power transmission over an impressive distance of up to 250 meters at 10 Mbps, which is crucial for extensive outdoor installations.
Network security is a priority, which is why the device is equipped with advanced protective features. Built-in surge protection shields the electronics against the effects of atmospheric discharges and sudden voltage spikes. The PoE Watchdog function automatically monitors the status of connected devices and performs a port reboot in case of no response, minimizing the need for physical service intervention. The metal desktop-style enclosure ensures excellent heat dissipation and resistance to mechanical damage.
System management is carried out through an intuitive browser interface and the advanced DoLynk Care cloud application. This allows for full network control from anywhere, real-time power consumption monitoring, and instant fault diagnostics. This professional tool combines the performance of enterprise-class switches with the simplicity of consumer devices.
Specification
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
LAN Ports
4 x RJ45 10/100 Base-T (PoE), 2 x RJ45 10/100/1000 Base-T (Uplink)
Transmission Speed
10 / 100 Mbps for ports 1-4, 10 / 100 / 1000 Mbps for Uplink ports
PoE Power Supply
Standard 802.3af/at, pins: 1-2(+), 3-6(-), 4-5(+), 7-8(-)
Output Power
Maximum 30 W per single PoE port
Power Budget
Total power for all PoE ports: 40 W
MAC Address Table
2k - ensures smooth traffic routing in small and medium-sized networks
Long-Range Transmission Mode
Extend On: range up to 250 m, speed 10 Mbps using UTP cable min. cat. 5e
Management and Software
Management via web browser and cloud (DoLynk Care). The DoLynk Care app is a professional remote monitoring platform that offers real-time network topology preview. It allows for remote configuration of parameters, monitoring of PoE port loads, and receiving instant hardware failure notifications. Thanks to cloud integration, the administrator can reboot a PoE port or change VLAN settings without the need for physical presence at the installation site, which drastically reduces system maintenance costs.
Advanced Features
PoE Watchdog (automatic camera reanimation), Loop Protection, LLDP (device discovery), Port Based VLAN (up to 32 groups), Flow Control (802.3x)
Security
Lightning protection: 4 kV (common mode), 2 kV (differential mode). ESD electrostatic protection: 8 kV (air), 6 kV (contact)
Device Power Supply
53 V DC / 0.8 A (external power adapter included in the set)
Power Consumption
Maximum 42.4 W (at full PoE load)
Operating Conditions
Temperature: -10 °C ... 55 °C, Humidity: 10% - 90% (non-condensing)
Certificates and Housing
CE certificate, metal desktop enclosure, black color
Contents
1x Switch PoE CS4006-4ET2GT-36
1x Power adapter 53V DC
1x User manual
Dimensions, Weight
Product dimensions: 27 x 115 x 85 mm (D x W x H)
Package dimensions: 85 x 200 x 120 mm (D x W x H)
Product weight: 200 g
Package weight: 696 g
