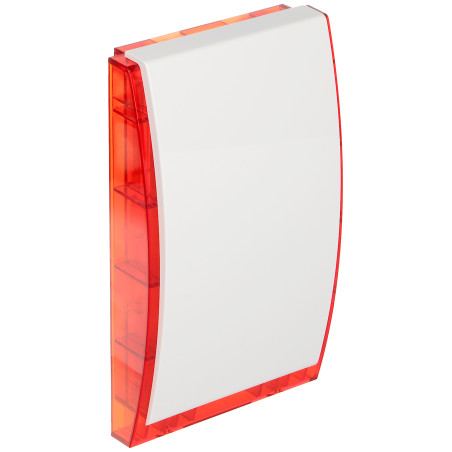

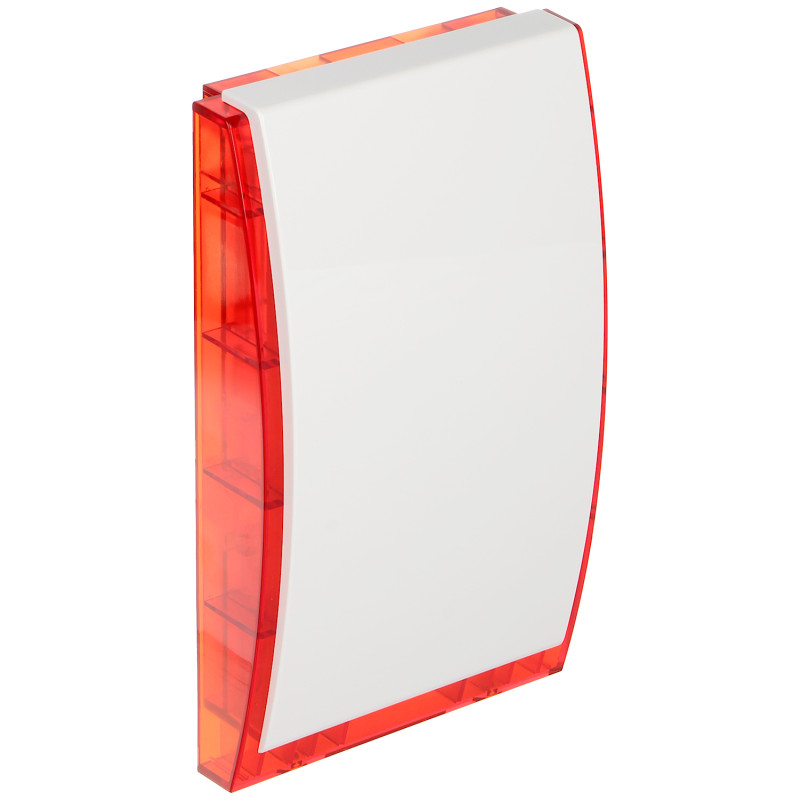

Wireless Outdoor Optical and Acoustic Siren ABAX ABAX2 Alarm 105dB LED Red Weatherproof SATEL ASP-200-R
zł 543,66
Tax included
Satel ASP-200-R is a professional outdoor optical and acoustic siren designed for wireless operation within advanced ABAX and ABAX2 alarm systems. The device combines high deterrence efficiency with reliability, offering a powerful 105 dB sound signal generated by a piezoelectric transducer and clear visual signaling based on modern LED diodes.
A key advantage of the siren is its exceptional energy efficiency and power from a high-performance BAT-ER-3.6 lithium battery with a capacity of 13 Ah. This allows for continuous operation of the device for about 2 years in a wide temperature range from -40°C to 55°C, making it an ideal solution for mounting on building facades in harsh climate conditions. The housing made of high-impact polycarbonate guarantees resistance to mechanical damage, UV radiation, and atmospheric factors, maintaining an aesthetic appearance for years.
The siren offers advanced tamper functions, detecting both the opening of the housing and attempts to detach the device from the mounting surface. Thanks to full two-way radio communication in the 868 MHz band, the user can remotely configure operating parameters and update software without needing physical access to the device. The product is fully compatible with ACU-220 and ACU-280 controllers in the ABAX 2 system, ensuring a transmission range of up to 2000 meters in an open area. This is a reliable solution for demanding users who value safety and modern technologies.
Wireless Outdoor Optical and Acoustic Siren ABAX ABAX2 Alarm 105dB LED Red Weatherproof
Model: SATEL ASP-200-R
EAN: 6931240070987 SKU: 931070986
- Full compatibility with ABAX and ABAX2 wireless systems
- Loud acoustic signaling up to 105 dB (piezoelectric transducer)
- Clear optical signaling via bright LED diodes
- Powered by a high-capacity 3.6V 13 Ah lithium battery
- Advanced tamper protection against opening and wall detachment
- Remote firmware update and parameter configuration
- Durable polycarbonate housing resistant to weather conditions and impacts
- Wide operating temperature range from -40°C to +55°C
- Four different acoustic signals selectable by the installer
- Radio communication range up to 2000 m in the ABAX2 system
Description
Satel ASP-200-R is a professional outdoor optical and acoustic siren designed for wireless operation within advanced ABAX and ABAX2 alarm systems. The device combines high deterrence efficiency with reliability, offering a powerful 105 dB sound signal generated by a piezoelectric transducer and clear visual signaling based on modern LED diodes.
A key advantage of the siren is its exceptional energy efficiency and power from a high-performance BAT-ER-3.6 lithium battery with a capacity of 13 Ah. This allows for continuous operation of the device for about 2 years in a wide temperature range from -40°C to 55°C, making it an ideal solution for mounting on building facades in harsh climate conditions. The housing made of high-impact polycarbonate guarantees resistance to mechanical damage, UV radiation, and atmospheric factors, maintaining an aesthetic appearance for years.
The siren offers advanced tamper functions, detecting both the opening of the housing and attempts to detach the device from the mounting surface. Thanks to full two-way radio communication in the 868 MHz band, the user can remotely configure operating parameters and update software without needing physical access to the device. The product is fully compatible with ACU-220 and ACU-280 controllers in the ABAX 2 system, ensuring a transmission range of up to 2000 meters in an open area. This is a reliable solution for demanding users who value safety and modern technologies.
Specification
Cooperation and System
Wireless system ABAX / ABAX2; Compatible with controllers ACU-220, ACU-280 (ABAX 2) and ACU-120, ACU-270, INTEGRA 128-WRL (ABAX).
Acoustic Signaling
Piezoelectric transducer; Sound pressure level: 105 dB; 4 sound signals to choose from.
Optical Signaling
High-brightness LEDs; Lens color: red.
Radio Communication
Frequency band: 868.0 MHz ... 868.6 MHz; Range in open area: up to 500 m (ABAX), up to 2000 m (ABAX 2).
Power Supply and Battery
Lithium battery BAT-ER-3.6 (ER34615) 3.6 V / 13 Ah (included); Battery life: approx. 2 years.
Current Consumption
Maximum current consumption: 480 mA; Standby current consumption: 0.6 mA.
Tamper Protection
Tamper detection for opening the housing; Tamper detection for detachment from the surface.
Configuration and Diagnostics
Remote configuration via radio; Remote firmware update; Constant battery status monitoring.
Construction and Housing
Material: high-impact polycarbonate; High mechanical strength; Color: red / white.
Operating Conditions
Operating temperature: -40 °C ... 55 °C; Application: Outdoor.
Physical Parameters
Dimensions: 148 x 254 x 64 mm; Weight: 800 g.
Manufacturer
SATEL; Country of origin: Poland.
Warranty
24 months (2 years).
Software and Digital Features
The device supports the advanced ABAX 2 radio communication protocol, which allows for full, two-way encrypted data exchange. The siren software allows for remote changing of signaling modes and volume without physical interference with the mounted device. Thanks to the firmware over-the-air update function, the system can always benefit from the latest improvements and features offered by the manufacturer. The intelligent energy management system continuously monitors the charge level of the BAT-ER-3.6 battery and reports its status to the alarm control panel, allowing maintenance to be planned well in advance. The software also implements advanced energy-saving algorithms, which, while maintaining full operational readiness, allow for achieving record operating times on a single cell.
Contents
1x ASP-200-R Siren
1x BAT-ER-3.6 Lithium battery (13Ah)
1x Set of mounting plugs and screws
1x User manual
Dimensions, Weight
Product dimensions: 64 x 148 x 254 mm (D x W x H)
Package dimensions: 70 x 260 x 160 mm (D x W x H)
Product weight: 800 g
Weight with package: 1020 g
