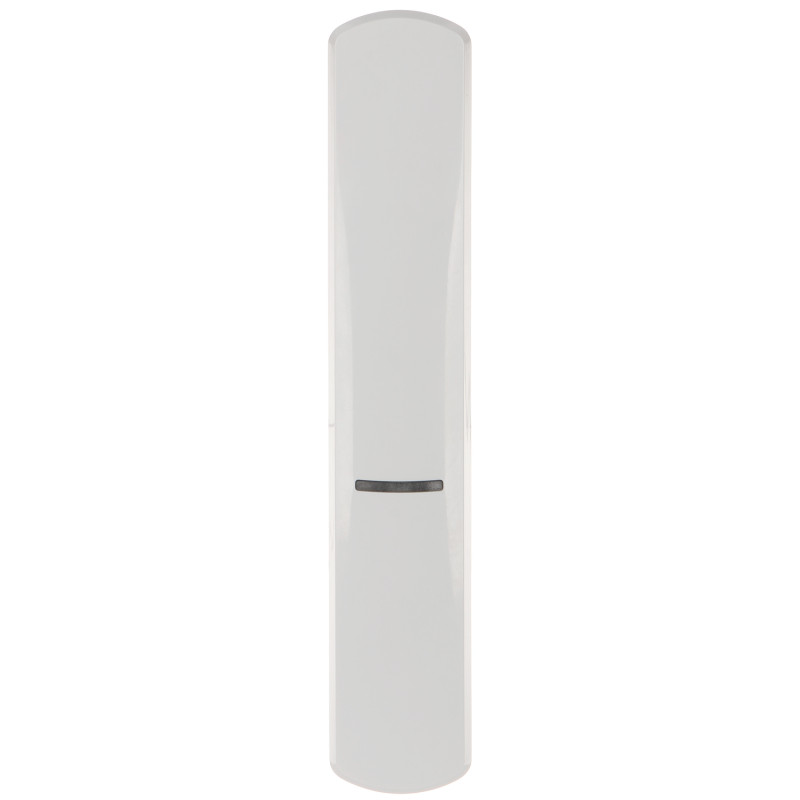

ABAX 2 Wireless System Controller for Alarm Control Panels bidirectional 1600m range SATEL ACU-280
zł 464,90
Tax included
The advanced ACU-280 wireless system controller is a key component of modern security systems, enabling seamless integration of ABAX 2 wireless devices with renowned INTEGRA, INTEGRA Plus, and VERSA series alarm control panels. This device is characterized by exceptional performance, offering a radio communication range of up to 1600 meters in open areas, making it an ideal solution for both single-family homes and large commercial facilities.
Product advantages include primarily full bidirectional radio communication, which ensures not only high signal transmission reliability but also continuous monitoring of the status of all connected components. Thanks to support for up to 48 wireless devices, the system becomes extremely flexible and scalable. Users will certainly appreciate the ability to integrate up to 248 APT-200 keyfobs and up to 6 wireless keypads, which significantly increases the comfort of daily operation of the alarm system.
Transmission security is at the highest level thanks to the use of modern communication protocols that protect the system against attempts to jam or intercept the signal. Additionally, advanced power-saving features in ABAX 2 technology allow for multi-year operation of peripheral devices on a single battery. The controller installation is fast and intuitive, and the built-in tamper protection reacts immediately to attempts to open the housing or detach the device from the wall, guaranteeing continuous protection of the facility.
ABAX 2 Wireless System Controller for Alarm Control Panels bidirectional 1600m range
Model: SATEL ACU-280
EAN: 6931240064481 SKU: 931064487
- Compatible with INTEGRA, INTEGRA Plus and VERSA control panels
- Supports up to 48 ABAX 2 wireless system devices
- Bidirectional, encrypted radio communication in the 868 MHz band
- Transmission range up to 1600 m in open area
- Supports up to 248 APT-200 keyfobs
- Supports up to 6 wireless keypads
- Remote firmware update without removing the device
- Advanced tamper protection (opening and detachment)
- Low power consumption (max. 60 mA at 12V DC)
- Compact dimensions for installation in OPU-4 P enclosures
Description
The advanced ACU-280 wireless system controller is a key component of modern security systems, enabling seamless integration of ABAX 2 wireless devices with renowned INTEGRA, INTEGRA Plus, and VERSA series alarm control panels. This device is characterized by exceptional performance, offering a radio communication range of up to 1600 meters in open areas, making it an ideal solution for both single-family homes and large commercial facilities.
Product advantages include primarily full bidirectional radio communication, which ensures not only high signal transmission reliability but also continuous monitoring of the status of all connected components. Thanks to support for up to 48 wireless devices, the system becomes extremely flexible and scalable. Users will certainly appreciate the ability to integrate up to 248 APT-200 keyfobs and up to 6 wireless keypads, which significantly increases the comfort of daily operation of the alarm system.
Transmission security is at the highest level thanks to the use of modern communication protocols that protect the system against attempts to jam or intercept the signal. Additionally, advanced power-saving features in ABAX 2 technology allow for multi-year operation of peripheral devices on a single battery. The controller installation is fast and intuitive, and the built-in tamper protection reacts immediately to attempts to open the housing or detach the device from the wall, guaranteeing continuous protection of the facility.
Specification
Communication Standard
ABAX 2 wireless system with full bidirectional data transmission.
System Compatibility
Full integration with SATEL INTEGRA, INTEGRA Plus, and VERSA series control panels via the communication bus.
System Capacity
Support for up to 48 wireless devices (detectors, input/output modules, sirens).
Keyfob Management
Ability to register and support up to 248 bidirectional APT-200 keyfobs.
Keypad Support
Support for a maximum of 6 wireless system keypads.
Radio Parameters
Operation in the 868.0 MHz to 868.6 MHz frequency band; Range up to 1600 m in line of sight (open space).
Transmission Security
AES-compliant data encryption, ensuring protection against third-party interference.
Diagnostics and Configuration
Dedicated ABAX 2 Soft software enabling advanced radio link diagnostics and device configuration.
Firmware Update
Ability to remotely flash firmware without physical access to the module.
Tamper Protection
Dual tamper contact protecting against unauthorized opening of the enclosure and detachment from the wall.
Electrical Power Supply
Rated voltage 12V DC; Power supply tolerance range +/- 15%; Current consumption in standby mode 35 mA; Maximum current consumption 60 mA.
Environmental Conditions
Operating temperature range from -10 °C to +55 °C; Maximum ambient humidity 93% (non-condensing).
ABAX 2 Soft Software
The dedicated ABAX 2 Soft application is an advanced diagnostic and configuration tool for installers. It allows for precise real-time monitoring of the radio signal level for each device individually, which is crucial for optimal sensor placement. The software enables remote modification of device operation parameters, assigning keyfobs to users, and managing firmware updates for all system components. The interface is clear and provides detailed information on battery status and potential interference in the 868 MHz band, which significantly speeds up the maintenance and servicing process.
Physical Features
Enclosure made of high-quality ABS plastic; Dimensions of the electronics board including antenna: 136 x 25 x 29 mm.
Contents
1x ACU-280 Controller
1x 868MHz spiral antenna
1x Set of mounting wall plugs
1x Quick installation guide
Dimensions, Weight
Product dimensions: 29 x 136 x 25 mm (Depth x Width x Height)
Package dimensions: 40 x 160 x 40 mm (Depth x Width x Height)
Product weight: 40 g
Weight including packaging: 70 g
