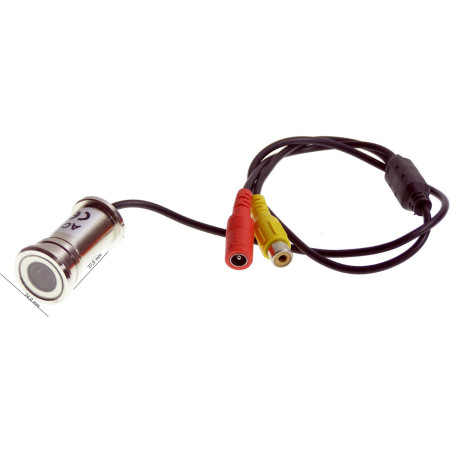

CCTV Hidden Door Peephole Camera 1/3 CMOS 550TVL 2.1mm 115deg 27-50mm Door Eye Camera

Model: ACTii AC4645

EAN: 6931240046456 SKU: 464552626

• Sensor 1/3
• Camera for door mounting as a peephole
• Lens: Focal length: 2.1mm; Viewing angle: 115° range
• Camera housing length adjustment between 37-56mm
• Solid aluminum housing
• Peephole identical to a standard one. No risk of detection that it is a camera.

Description

Solid camera hidden in a door peephole.

Very good 1/3" CMOS 550TVL sensor and high sensitivity of 0.1lux.

Lens 2.1mm; Viewing angle: 115° range

Peephole identical to a standard one. No risk of detection that it is a camera.

Specification

Camera type

PAL

Sensor

1/3 CMOS

Sensor size

550TVL

Image parameters

S/N Ratio: > 46dB

Scanning system: Progressive

Electronic Shutter: 1/60 to 1/15000

Auto Gain Control (AGC): AUTO

Sensitivity: 0.1LUX

Lens

Focal length: 2.1mm

Viewing angle: 115°

Aperture: F 1.4

Focus adjustment: Yes, manual

Lens mount: board cameras

Housing

Dustproof housing. Once correctly mounted in the door, the camera is resistant to weather conditions.

Vandal-proof camera: YES

Material: Aluminum

Glass cover: Tempered double glass

Operating temp: -30°C - +55°C

Color: Silver

Camera parameters

Video output: Cinch Plug

Video output signal: PAL/NTSC (standard video input in e.g. VCR or DVD; can be connected to a TV via TV-OUT or EURO to a DVR etc.).

Power supply

DC 12V 500mA

Power input: Power jack 2.1mm/5.5mm

Power consumption: 3W

Additional information

Camera housing length adjustment between 37-56mm

Cable length: 55cm

Minimum mounting diameter: 18mm (hole diameter in the door)

Set contents

1x Camera

1x Cardboard packaging

Certificates and standards

CE

ROHS

Dimensions, Weight

Product dimensions: 42 x 25 x 25 mm (D x W x H)

Packaging dimensions: 50 x 50 x 50 mm (D x W x H)

Product weight: 200 g

Weight with packaging: 284 g
