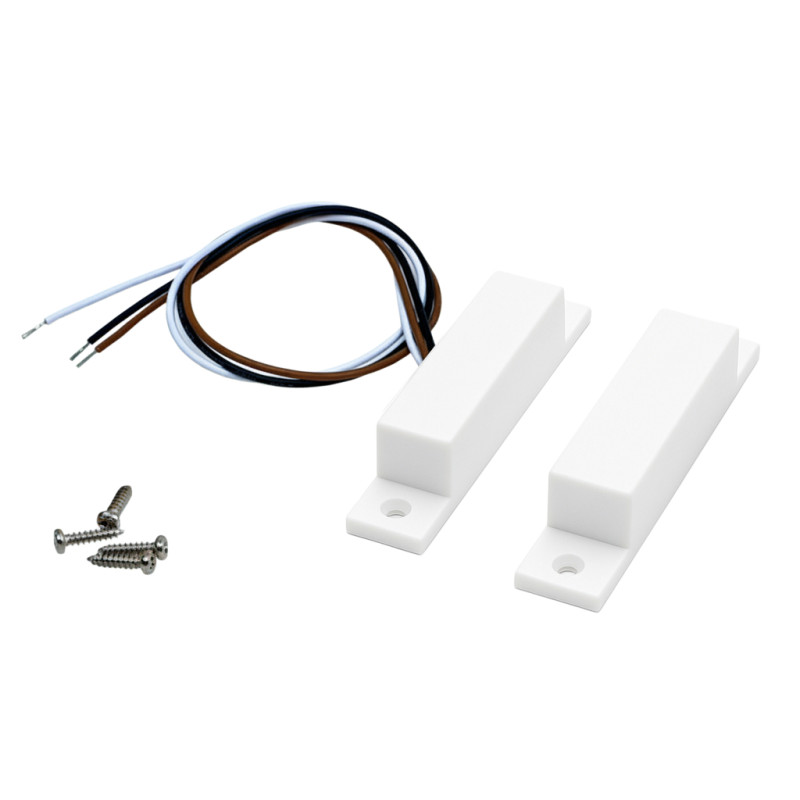

Magnetic Sensor, Side Reed Switch, 64mm, 20mm gap, NO and NC - white color For Satel Bosch Elmes

Model: ACTii AC8474

EAN: 6931240084748 SKU: 847432131

• Large 20mm gap
• Mounting screws are included in the set
• Solid construction
• The sensor supports two output states: NC and NO
• The reed switch works with alarm control panels from SATEL, ELMES, Bosch, AVT, Ropam and most other alarm control panels.

Description

Side reed (magnetic) sensor, intended for use in alarm systems.

Magnetic sensor is installed on plastic and wooden doors, windows, etc.

Connection is made using a two-wire line.

COLOR - White

Sensor supports two output states: NC and NO

Specification

Reed switch parameters

Output: Three wires; Sensor supports two output states: NC and NO; Brown wire common, one white wire NO, second white wire NC.

Gap: 20mm

Mounting: Side

Housing: ABS

Color: White

Operating temperature: -25°- +85°

Detailed technical data

Sensor type: 2EOL/NC

Parametric resistance: 2 x 1.1k ohm

Maximum switching voltage of the reed switch: 200V

Maximum switching current: 500mA

Maximum continuous current (non-switching): 1.5 A

Rated power: 10VA

Contact material: Ru (Ruthenium)

Kit contents

Reed switch

Mounting screws

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 13 x 64 x 13 mm (D x W x H)

Packaging dimensions: 100 x 100 x 25 mm (D x W x H)

Product weight: 22 g

Weight with packaging: 22 g
