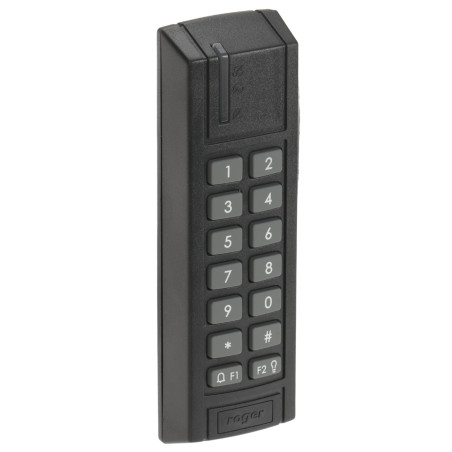

125kHz Proximity Reader with Keypad IP65 ROGER PRT12EM
zł472.07
Tax included
The external proximity reader PRT12EM by Roger is an advanced device designed for access control systems, combining the functionality of an RFID card reader and a numeric keypad. The device supports the Unique 125 kHz standard, ensuring compatibility with a wide range of popular proximity cards and key fobs. Thanks to its robust IP65-rated enclosure, the reader is fully adapted for operation in harsh outdoor conditions, demonstrating high resistance to dust and moisture.
One of the key advantages of the PRT12EM model is its ability to operate autonomously, allowing it to be used as a standalone access control point without the need for an external controller. The device is equipped with a range of security features, including tamper protection that reacts to attempts to detach it from the surface or open the enclosure. The reader also offers an EMC-4 card programmer function, which significantly facilitates user management within the system.
The device interface includes NO/NC inputs and transistor and relay outputs, enabling direct control of electric strikes or electromagnetic locks. The built-in keypad allows for PIN code entry, increasing the security level through two-factor verification (card + code). The reader also features a doorbell button, making it an ideal solution for entrances to office buildings, warehouses, or residential facilities. The device is fully configurable, and its operation is intuitive thanks to LED and audible signaling.
125kHz Proximity Reader with Keypad IP65
Model: ROGER PRT12EM
EAN: 6931240013212 SKU: 931013216
- Support for Unique 125 kHz standard cards
- Built-in numeric keypad
- Autonomous operation as a standalone access control point
- IP65 ingress protection rating (weather resistance)
- Tamper protection (detachment, opening of the enclosure)
- Built-in doorbell button
- Memory for 120 users and 1024 events
- Relay output 30V / 1.5A
Description
The external proximity reader PRT12EM by Roger is an advanced device designed for access control systems, combining the functionality of an RFID card reader and a numeric keypad. The device supports the Unique 125 kHz standard, ensuring compatibility with a wide range of popular proximity cards and key fobs. Thanks to its robust IP65-rated enclosure, the reader is fully adapted for operation in harsh outdoor conditions, demonstrating high resistance to dust and moisture.
One of the key advantages of the PRT12EM model is its ability to operate autonomously, allowing it to be used as a standalone access control point without the need for an external controller. The device is equipped with a range of security features, including tamper protection that reacts to attempts to detach it from the surface or open the enclosure. The reader also offers an EMC-4 card programmer function, which significantly facilitates user management within the system.
The device interface includes NO/NC inputs and transistor and relay outputs, enabling direct control of electric strikes or electromagnetic locks. The built-in keypad allows for PIN code entry, increasing the security level through two-factor verification (card + code). The reader also features a doorbell button, making it an ideal solution for entrances to office buildings, warehouses, or residential facilities. The device is fully configurable, and its operation is intuitive thanks to LED and audible signaling.
Specification
Compatibility
RACS (Roger)
Card support
Unique EM 125kHz (RFID)
Card reading range
max. 15 cm
Built-in keypad
Yes
Autonomous operation
Yes
Doorbell button
Yes
Tamper output
Yes
Communication
RS-232, RACS (Roger), Wiegand 26, Magstripe (Clock & Data)
Software
The device works with the free RARC software, which allows for full configuration of the reader's parameters and management of the user database. The software allows the reader to operate in EMC-4 card programmer mode, enabling quick addition and removal of cards from the system. The program interface is clear and allows for easy definition of permissions for 120 indexed users and viewing the history of 1024 events stored in the device's memory. Thanks to RARC, the administrator can remotely manage input/output settings and update the reader's firmware, ensuring long-term and trouble-free operation of the access control system.
Selected features
Tamper protection, 120 users, 1024 event history, 2x NO/NC input, 2x transistor output, 30V/1.5A relay output, LED and audible signaling
Power supply
12V DC, average current consumption 65mA
Operating temperature
-25°C ... 60°C
Humidity
10% ... 95% (non-condensing)
Ingress protection rating
IP65
Warranty
3 years
Contents
1x PRT12EM proximity reader
1x User manual
Dimensions, Weight
Product dimensions: 23 x 152 x 46 mm (D x W x H)
Package dimensions: 50 x 230 x 105 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 270 g
