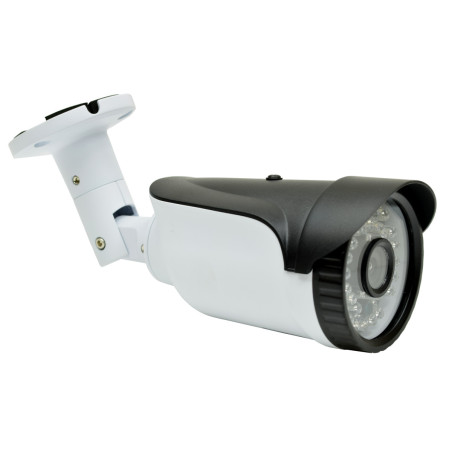

Integrated Outdoor Camera AHD TVI CVI 1080p CVBS CMOS, IR LEDs 25m, 3.6mm, Bracket, OSD Menu

Model: ACTii AC9471

EAN: 6931240094716 SKU: 947148461

• Sensor 1/3 CMOS, Resolution: 1920x1080 FULL HD; Sensitivity: 0.01lux
• AHD, CVI and TVI interface allows digital video signal transmission via coaxial cable in 1080p resolution. This enables FULL HD image transmission over distances up to 500m while maintaining low installation costs.
• Selectable AHD, CVI, TVI and CVBS standard via cable switch
• Solid aluminum housing with an integrated bracket allowing for cable concealment.
• Camera with IR LEDs illuminating an area up to 25m.
• Mechanical ICR infrared filter.
• OSD menu allows setting many important parameters depending on the camera mounting conditions.

Description

Outdoor compact camera

High-class F22 + FH8536 1/3 CMOS sensor with FULL HD 1920x1080 resolution and high sensitivity of 0.01lux.

3.6mm lens with 69° field of view

Camera works in four video transmission standards: digital AHD TVI CVI and analog CVBS (e.g., can be connected directly to a TV or any DVR)

Selectable image standard AHD, TVI, CVI and CVBS (PAL) via button on the camera cable

Solid aluminum housing with an integrated bracket allowing for cable concealment.

Camera with IR LEDs illuminating an area up to 25m.

OSD menu on the cable. In the OSD menu, you can set all camera parameters: DNR, WDR, image format (AHD, CVI, TVI, CVBS) ...

Specification

Camera type

AHD + CVI + TVI + CVBS (standard selection via cable switch)

Camera works in five video transmission standards: digital AHD TVI CVI and analog CVBS (e.g., can be connected directly to a TV)

Selectable image standard AHD, TVI, CVI and CVBS (PAL) via button on the camera cable

Sensor

1/3 CMOS

F22 + FH8536

Matrix size

2 Mpx

Resolution

1920 x 1080 - 1080p AHD, TVI, CVI

960 x 576 - 960H CVBS

Image parameters

Signal-to-noise ratio (S/N): > 58dB

Scanning system: Progressive

Sensitivity: 0.01LUX (without IR illuminator)

Day/Night mode: YES

Lens

Focal length: 3.6mm

Field of view: 69°

Light: F 1-1.4

Focus adjustment: Yes, manual

Lens mount: CS

Lens for Mega Pixel cameras: YES, 3Mpix

Housing

Outdoor housing: IP66 tightness (dust-tight, resistant to strong water jets from all directions)

Material: Aluminum, ABS

Glass cover: Tempered double glass

Operating temp.: -30°C - +55°C

Bracket integrated with the camera

Protection against cable cutting: YES, cable hidden in the bracket

Stand allows rotation and locking in any direction at any angle.

Color: White

Power supply

DC 12V 250mA

Power input: 2.1mm/5.5mm power jack

IR LED illumination

YES

Number of IR LEDs: 25x

Illumination range - up to 25m

IR illumination range depends on camera mounting conditions and lens viewing angle width.

Mechanically removable infrared filter (ICR)

ICR - Mechanically removable infrared filter. This filter significantly affects image quality. Without this filter, the daytime image is blurry and color reproduction is incorrect (e.g., green is grey...), and at night, the camera cannot utilize most of the IR LED range and focus more light.

OSD menu

YES

Setting options:

Camera operation mode: AHD, CVI, TVI, CVBS

Parameters: WDR, DNR, Brightness, Contrast, Sharpness, Color, Day/Night, WB, AE.

Additional information

Cable length: 35cm

Set contents

1x Camera

1x Cardboard packaging

1x User manual

Certificates and standards

CE

ROHS

Dimensions, Weight

Product dimensions: 95 x 65 x 55 mm (D x W x H)

Packaging dimensions: 120 x 80 x 60 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 332 g
