1 Purpose and Functions

The ACTii AC3054 digital wireless motion detector is an advanced detection device designed for alarm systems operating on the 433MHz frequency. The device analyzes human movement in a protected space and, upon detecting an intrusion, generates a wireless alarm transmission to the control panel. By utilizing a dual low-noise passive infrared sensor and advanced non-linear filtering technology with fuzzy logic, the detector ensures excellent detection parameters while maintaining very low power consumption.

Main features:

• ✔ Pet Immunity function, minimizing the risk of false alarms triggered by household pets.
• ✔ Advanced non-linear filtering technology with fuzzy logic for precise signal analysis.
• ✔ Operation on the standard 433MHz frequency, compatible with most wireless alarm control panels.
• ✔ Anti-white light blinding feature and high immunity to electromagnetic interference (RF/RM).
• ✔ Digital temperature compensation, ensuring stable operation in changing environmental conditions.
• ✔ Long battery life thanks to pulse signal processing technology and low power consumption.
• ✔ Wide 110° detection angle and range up to 12 meters.
• ✔ Built-in filter cutting off ultraviolet radiation and visible light spectrum.

Detection and range characteristics:

The device has an optimized coverage range divided into zones, which allows for effective monitoring of the room:

• Maximum distance: up to 11-12 meters
• Middle zone: approx. 8 meters
• Near zone: approx. 5 meters
• Radio signal range: up to 200 meters in open space

2 Technical Specification

3 Installation and Mounting

Mounting location selection:

To ensure optimal detector operation, follow these rules:

• Recommended mounting height is from 1.7 m to 2.5 m.
• The detector can be mounted flat on a wall or in a corner of the room using the included adjustable bracket.
• Avoid mounting near heat sources (radiators, air conditioners) and in places exposed to direct strong drafts.
• Do not point the sensor directly at windows through which strong sunlight may enter.

Installation procedure:

1. Open the detector housing and install the 9V battery, paying attention to polarity.
2. Attach the mounting bracket to the wall or corner using wall plugs.
3. Place the detector on the bracket and set the appropriate tilt angle to cover the desired detection area.
4. After power is connected, the LED will indicate readiness. Perform a walk test to ensure the detector reacts correctly to movement in the entire protected area.

4 Safety Rules and Maintenance

• Power supply: Use only high-quality 9V alkaline batteries. A weak battery can significantly reduce radio transmission range.
• Lens maintenance: The Fresnel lens should be kept clean. Dust and dirt should be removed with a soft, damp cloth without using aggressive detergents.
• Operating environment: The device is designed for indoor use. It should not be exposed to direct rain or extreme humidity (above 95%).
• Testing: It is recommended to check the correct operation of the detector regularly (once a month) by triggering a test alarm.
• Pets: The pet immunity function works most effectively when pets move near the floor. Large animals or animals jumping on furniture located in the detector's field of view may trigger an alarm.

5 Kit Contents and Additional Information

The package contains the following elements:

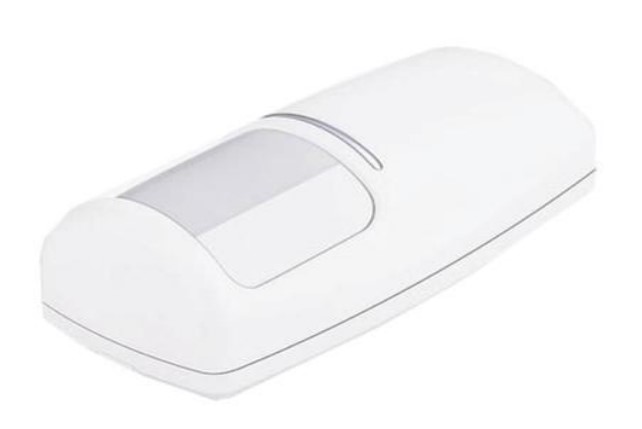

• ✔ 1x ACTii AC3054 wireless PIR motion sensor
• ✔ 1x Adjustable mounting bracket
• ✔ Original manufacturer's packaging
